Dual Spindle
Dual Spindle · Heavy Cutting Core
Gearbox reduction drive system with hardened box-way guidance, built for heavy-duty cutting conditions

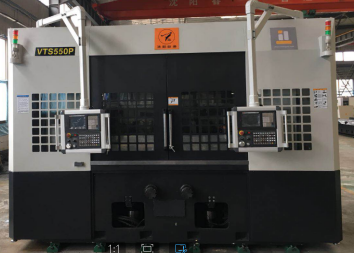

Heavy-Cutting Dual-Spindle
CNC Vertical Lathe
-
Gearbox Reduction DriveHigh-rigidity gearbox mechanism for stable low-speed, high-torque output
-
Max Torque 4580NmUltra-high spindle torque output for effortless heavy cutting of hard materials
-

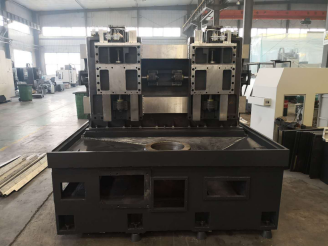

X/Z Axis Hardened Box WaysHigh-frequency hardened rectangular guideways with superior wear resistance and vibration damping
-
Dual Spindle Sync / IndependentSupports synchronized collaboration or independent operation for flexible process adaptation

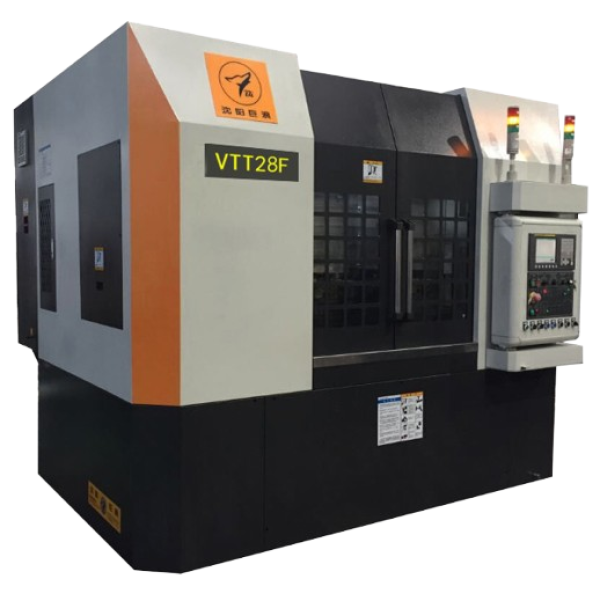

Dual Turret
Dual Turret · Multi-Process Composite Machining
Horizontal and vertical turret options available, covering mass production to complex process scenarios
Dual-Row Tool Post Vertical Lathe
Configuration A
Dual-row tool post design with ample tool capacity for continuous multi-process machining.
Configuration B
Optimized layout with short tool-change paths and high efficiency, minimizing non-cutting time.
Turret Selection Comparison
Type A — Horizontal Turret 12T
Type: Horizontal turret
Stations: 12 positions
Feature: Large tool capacity with fast change, ideal for mass production of standardized parts
Type H — Vertical Turret 6T
Type: Vertical turret
Stations: 6 positions
Feature: Compact structure, excellent rigidity, small footprint for small-to-medium batch and complex processes
Specifications
Technical Specifications Summary
| Item | Specification | Note |
|---|---|---|
| Product Name | Dual Spindle Dual Turret Vertical Lathe | — |
| Drive Method | Gearbox Reduction | Low-speed high-torque output |
| Max Spindle Torque | 4580 Nm | Core heavy-cutting metric |
| Guideway Type | X/Z Axis Hardened Box Ways | High rigidity, wear-resistant |
| Spindle Config | Dual Spindle (Sync / Independent) | Cooperative or standalone |
| Turret Type A | Horizontal Turret 12T | Mass production preferred |
| Turret Type H | Vertical Turret 6T | Compact process preferred |
| Tool Post Variant | Dual-Row Tool Post Lathe | Continuous multi-process |
