CNC Vertical Lathe

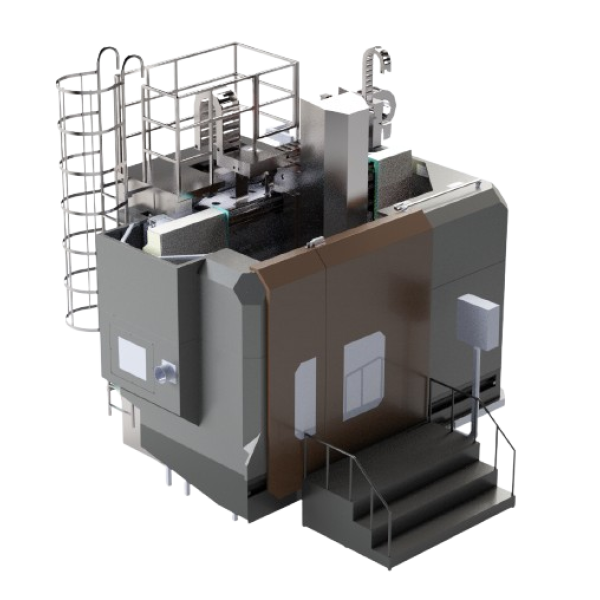

Column-Symmetrical CNC Vertical Lathe
ETL1250 / ETL1600 / ETL2000 / ETL2500

ETL1250 / ETL1600 / ETL2000 / ETL2500

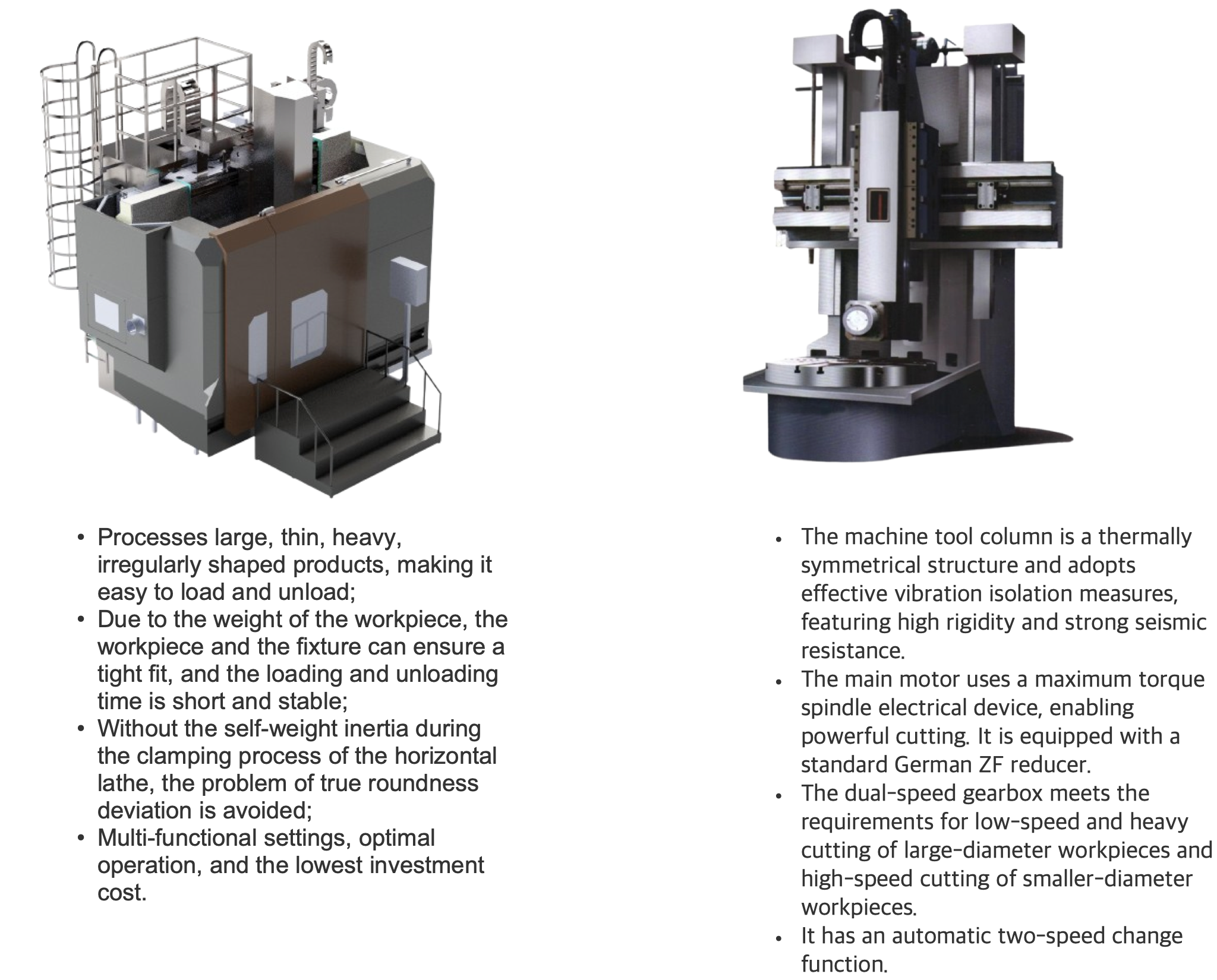

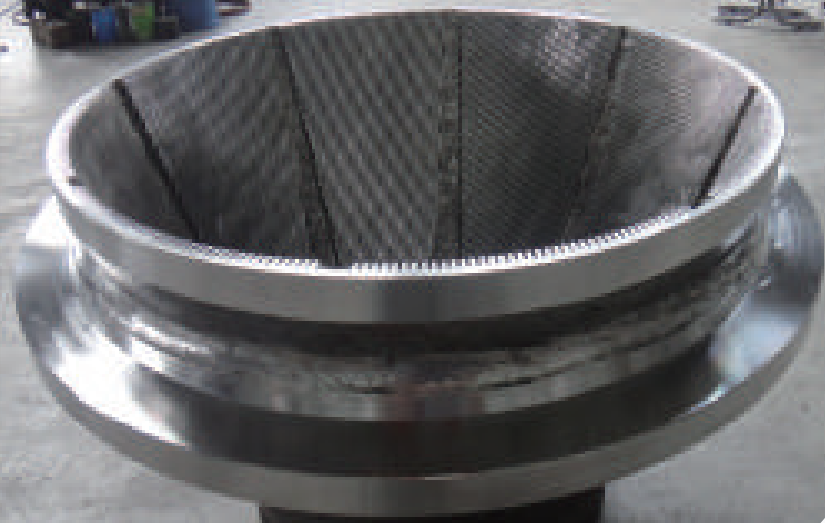

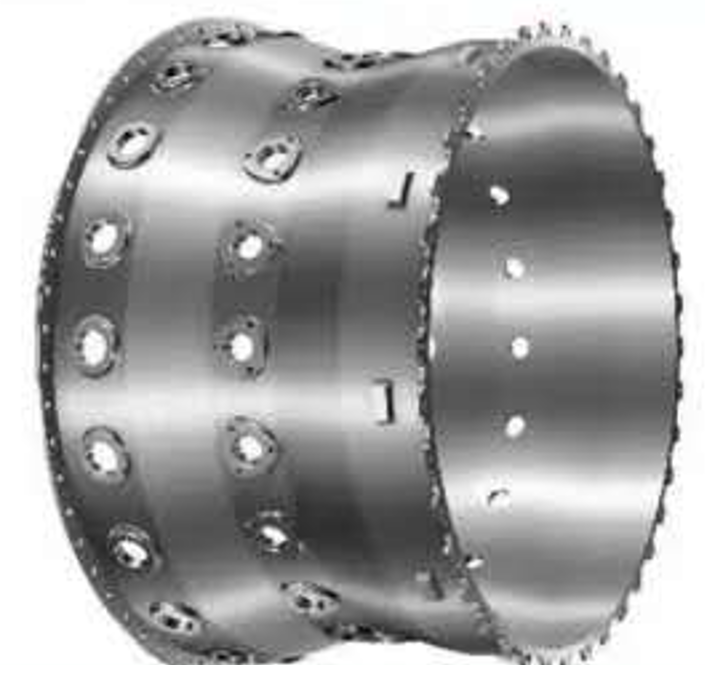

◈ It is easy to load and unload large, thin, heavy and irregularly shaped products.

◈ Due to the weight of the workpiece, the workpiece and the fixture can be ensured to be tightly fitted, and the loading and unloading time of the workpiece is short and stable.

◈ There is no problem of poor roundness caused by the self-weight inertia when holding the workpiece as in a horizontal lathe.

◈ Multi-functional settings, optimal operation, and the lowest investment cost.

◈Thermal-symmetrical column structure with effective vibration isolation. High rigidity and anti-vibration capability.

◈Max torque spindle motor for heavy cutting, standard German ZF reducer.

◈2-speed automatic gearbox for both large diameter low-speed heavy cutting and small diameter high-speed cutting.

Φ1250~2500 mm

Max Cutting Diameter

25000~40000 Nm

Max Spindle Torque

3500~10000 kg

Max Workpiece Weight

ADVANTAGES

Machine Advantages

ETL1600 VTL	Advantages	Other factories
FANUC-0i-TF Plus Control System		Domestic system
Thermal-symmetrical column with FEA analysis, effective vibration isolation	High rigidity
Dual ball screw beam elevation	High precision
30/37KW spindle servo motor with 2-speed automatic gearbox	Low noise, high reliability, energy saving	Async motor - high power consumption, low torque
Japan THK C3-class ball screws with NSK bearings, pre-stretched	Superior positioning accuracy	Domestic screws/bearings, no pre-stretch
High-precision rolling bearing table guide, NSK/FAG bearings	300rpm, 8T capacity	Hydrostatic guide - 160rpm, 5T capacity
Optional 4/5/6-station servo hydraulic turret (9100Kgf)	High rigidity, fast indexing	Electric turret - poor rigidity, 2000Kgf
X-axis rapid traverse 6m/min	Fast movement	2m/min
Large-flow circulating lubrication	Adequate beam lubrication	No beam lubrication
Double-door guard 4200×4500mm	Compact footprint	7000×5000mm
Machine weight 23000kg		Approx. 13000kg

SPECIFICATIONS

Mechanical Specifications

Project	Unit	ETL1250	ETL1600	ETL2000ATC	ETL2500ATC
Processing capacity
Table Diameter	mm	1000	1400	1800	2200
Chuck		Heavy-duty 4-jaw independent	Heavy-duty 4-jaw independent	Heavy-duty 4-jaw independent	Heavy-duty 4-jaw independent
Max. Cutting Diameter	mm	1250	1600	2000	2500
Max. Cutting Height	mm	1000	1200	1200/1400	1200/1400
Max. Workpiece Weight	kg	3500	5000	10000	10000
Travel
X-axis Travel (L/R)	mm	-50～+750	-50～+915	-50～+1200	-50～+1450
Z-axis Travel (U/D)	mm	700	1000	1000	1000
Beam Vertical Travel	mm	650	800	800	800
X/Z Rapid Traverse	m/min	3	3	3	3
Spindle
Spindle Power	kw	30/37	30/37	37/45	45/55
Spindle Speed	rpm	2～250	2～200	2～160	2～100
Max. Spindle Torque	Nm	25000	30000	35000	40000
Spindle Rotary Table Bearing (Optional)	mm	Φ620	Φ685	Φ780	Φ970
Ram & Tool Post
Square Ram Size		220×220	220×220	240×240	250×250
Max. Tool Post Cutting Force	KN	18	25	30	40
Square Tool Post	mm	40×40	40×40	40×40	40×40
Boring Bar	mm	Φ50	Φ50	Φ50	Φ50
Tank Capacity
Coolant Tank	L	600	600	600	600
Lubricant Tank	L	4.6	4.6	4.6	4.6
Others
Power Specification		380V±10%	380V±10%	380V±10%	380V±10%
Power Requirement	KVA	50	60	70	80
Machine Footprint (L×W)	m	3.2×3.0	3.6×3.5	4.4×4.1	5.2×4.8
Machine Weight	Kg	16000	22000	25000	28000
Guard + Chip Conveyor		External guard + Hinge belt chip conveyor	External guard + Hinge belt chip conveyor	External guard + Hinge belt chip conveyor	External guard + Hinge belt chip conveyor
Machine Accuracy		Positioning accuracy ±0.01	Positioning accuracy ±0.01	Positioning accuracy ±0.01	Positioning accuracy ±0.01
		Repeatability±0.007	Repeatability±0.007	Repeatability±0.007	Repeatability±0.007
