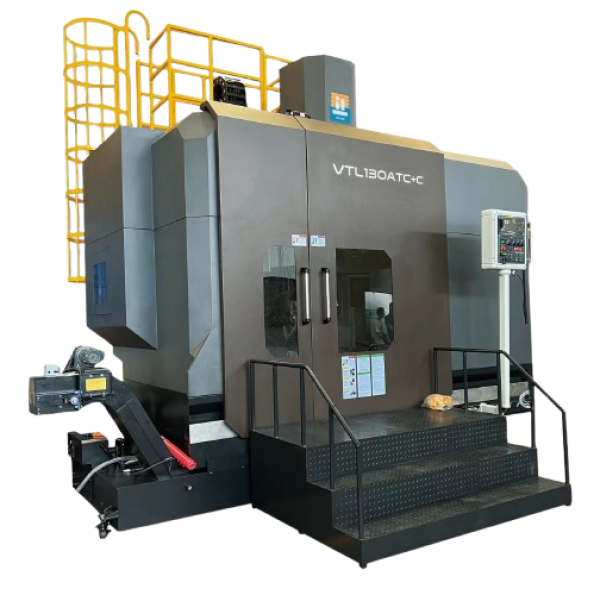

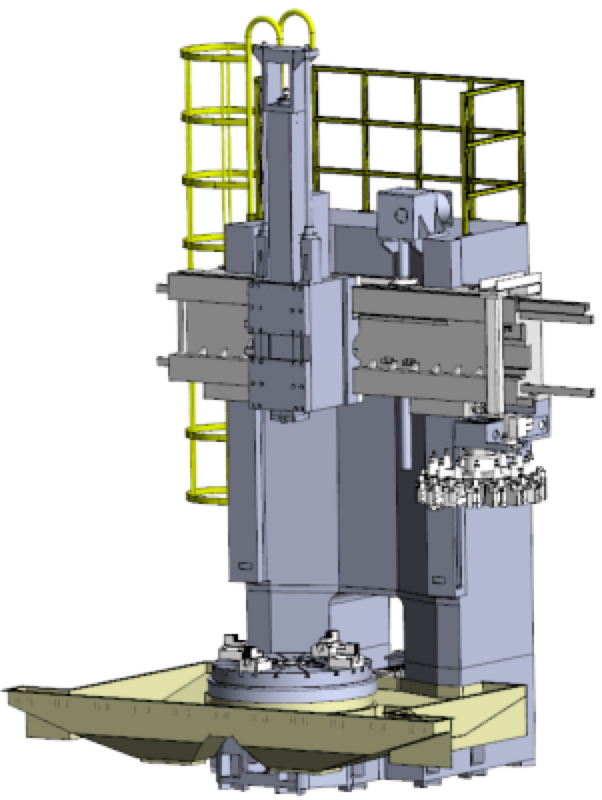

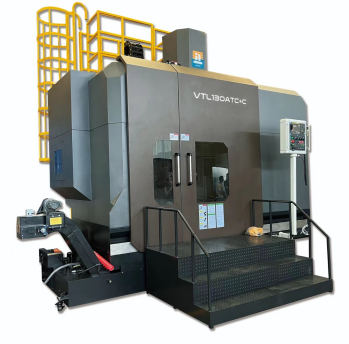

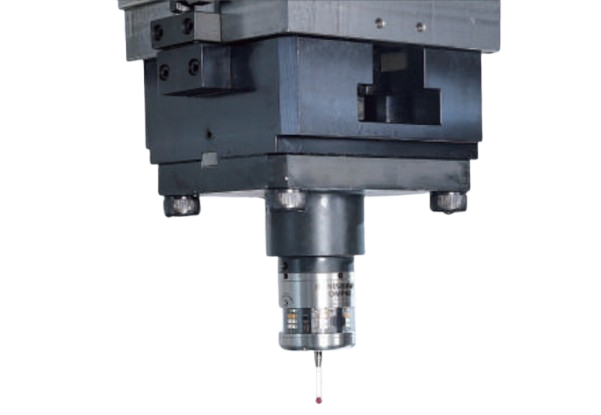

Product Introduction
Features
- ● Capable of machining large, thin, heavy, and irregularly shaped products with easy loading/unloading;
- ● Due to workpiece self-weight, the workpiece and fixture ensure close contact, achieving high precision and stable machining results with short loading/unloading time;
- ● No oval machining caused by the self-weight inertia during horizontal lathe clamping, demonstrating near-perfect roundness precision;
- ● Difficult-to-clamp irregular workpieces can be easily and smoothly machined. Simplified fixture construction reduces manufacturing costs.
- ● The machine's nearly square high-rigidity design minimizes thermal displacement and vibration. Increased chip removal angle with stainless steel plates for better chip removal, preventing bed thermal deformation;
- ● Three-dimensional assembly line conforms to ergonomic operability, easy workpiece disassembly;
- ● Occupies half the floor space of a horizontal lathe;
- ● Multi-function setup with optimal operation at the lowest investment cost.
| No. | VTL Vertical Lathe | advantages |
|---|---|---|
| 1 | FANUC-0i-TF PlusControlSystem----MachiningPrecisionIT6 | |
| 2 | Spindle (Worktable) Adopts Crossed Roller Bearings,Ensures the spindle achieves high radial and axial load capacity at both high and low speeds, delivering high precision, low noise, and durability. Features high precision, high load capacity, and high rigidity, suitable for large and asymmetric workpiece machining. | Improves worktable rotation precision, speed 200/320 rpm |
| 3 | Z-Axis Adopts Circular Ram, Extra-Large Cross-Section Design, Rolling + Sliding Composite Guide,Ensures machine rigidity while maintaining machining precision. Features a hydraulic counterweight automatic balancing system, ensuring machining precision during large-height and deep-hole machining. Built-in central coolant delivery device ensures tool cooling and extends tool life. |  |
| 4 | X/Z axes adopt Japanese THK C3-grade precision ball screw, equipped with Japanese NSK precision angular contact ball bearing preloaded installation, long-type double-nut preloaded. | Ensures superior positioning precision. |
| 5 | The main drive is powered by a wide-range spindle servo motor, through a 2-stage gearbox (automatic 2-speed) and high-precision 2-stage gear transmission. | Low noise, high reliability |
| 6 | ATC Tool Magazine: Automatic Tool Clamping StructureAdopts tooth disc structure with upper and lower male/female perfect engagement, maximizing rigidity during turning, especially during interrupted cutting, keeping the tool holder tightly attached to the square ram. |  |
| 7 | 4/5/6Station----servo hydraulic tool turret(Hydraulic clamping force 9100 Kgf; electric tool holder clamping force 2000 Kgf) | Good rigidity, fast indexing |
| 8 | X/Z axis rapid movement 12 m/min | Fast movement speed (other manufacturers: 2 m/min) |
| 9 | Guide,ball screw high-flow circulating lubrication pump(beam up/down,high-flow circulating lubrication) | Sufficient lubrication |
| 10 | Machine external protection, adopts double-door structure | Small machine floor space |
| 11 | Optional X-Axis closed-loop linear scale | |
| 12 | Optional Z-Axis closed-loop linear scale |

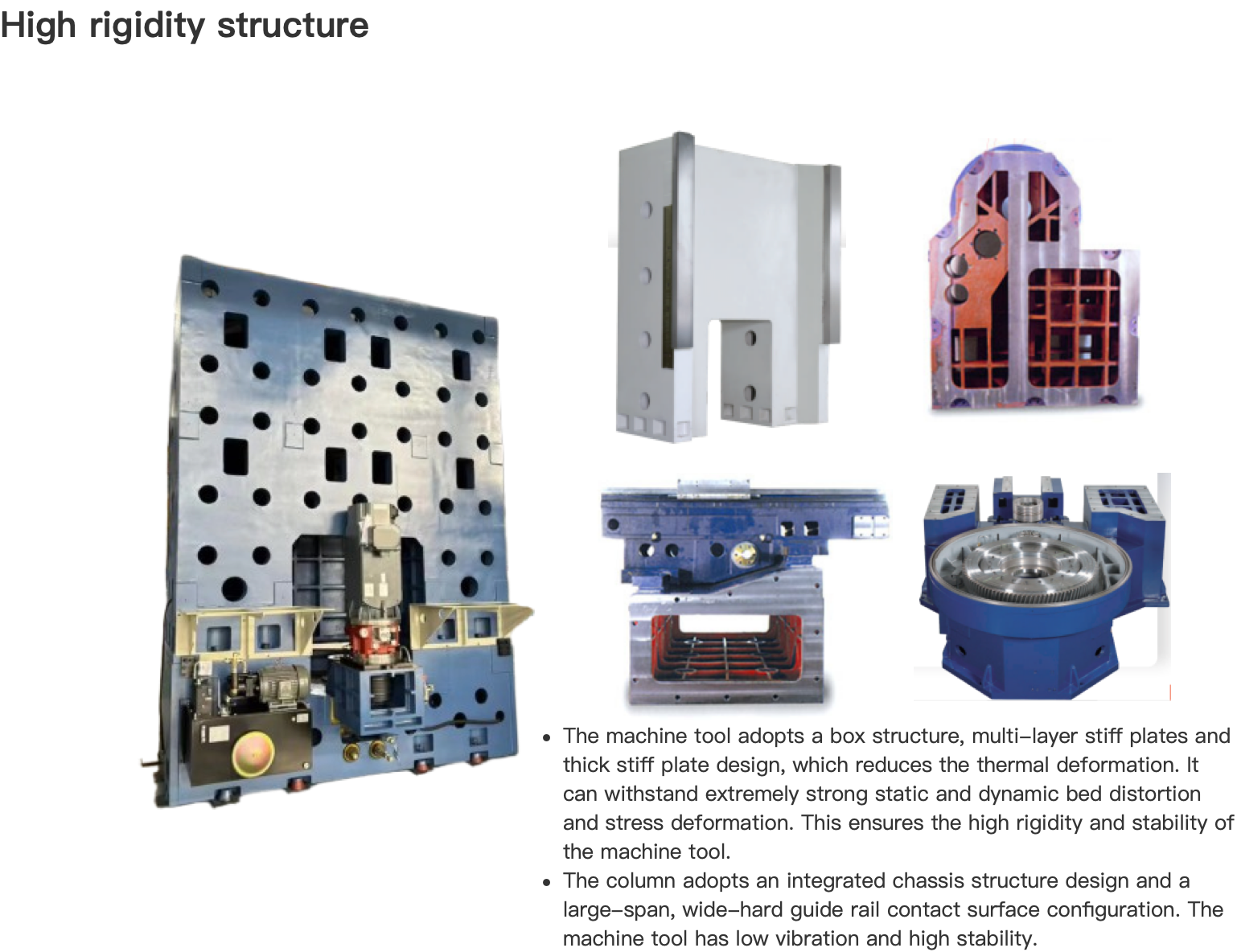

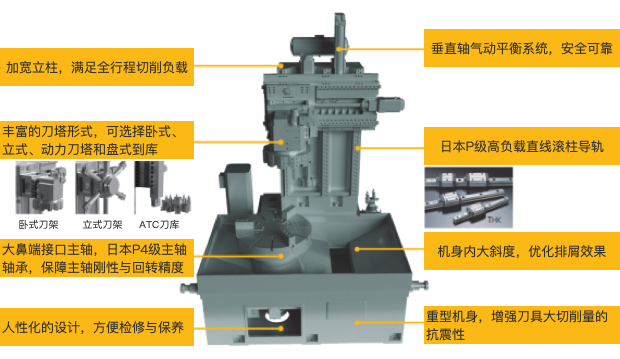

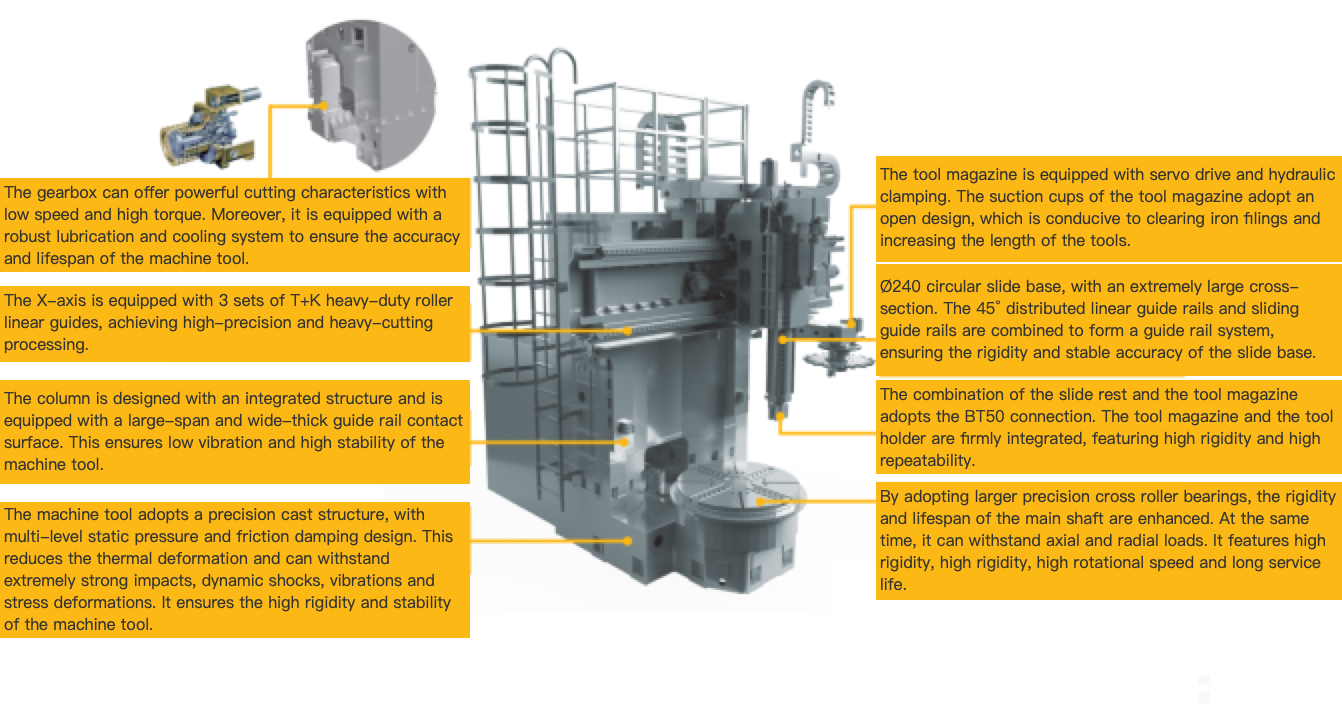

High Rigidity Structure
Box Structure Design
The machine adopts a box structure with multi-layer rib plates and thick-wall design, reducing thermal deformation and withstanding extreme static and dynamic bed twisting and stress deformation, ensuring high rigidity and high stability. The bed interior uses a honeycomb rib plate structure to effectively distribute stress and improve overall rigidity.
Monolithic Box Column
The column adopts a monolithic box structure design with large span and dual guide contact surface configuration, resulting in low machine vibration and high stability. The column interior uses a box-within-box structure with multi-layer reinforcing rib design, ensuring stability during heavy cutting.
High-Precision Rotary Worktable
Supported by crossed roller bearings
Factory Photo
High-Rigidity Bed Structure

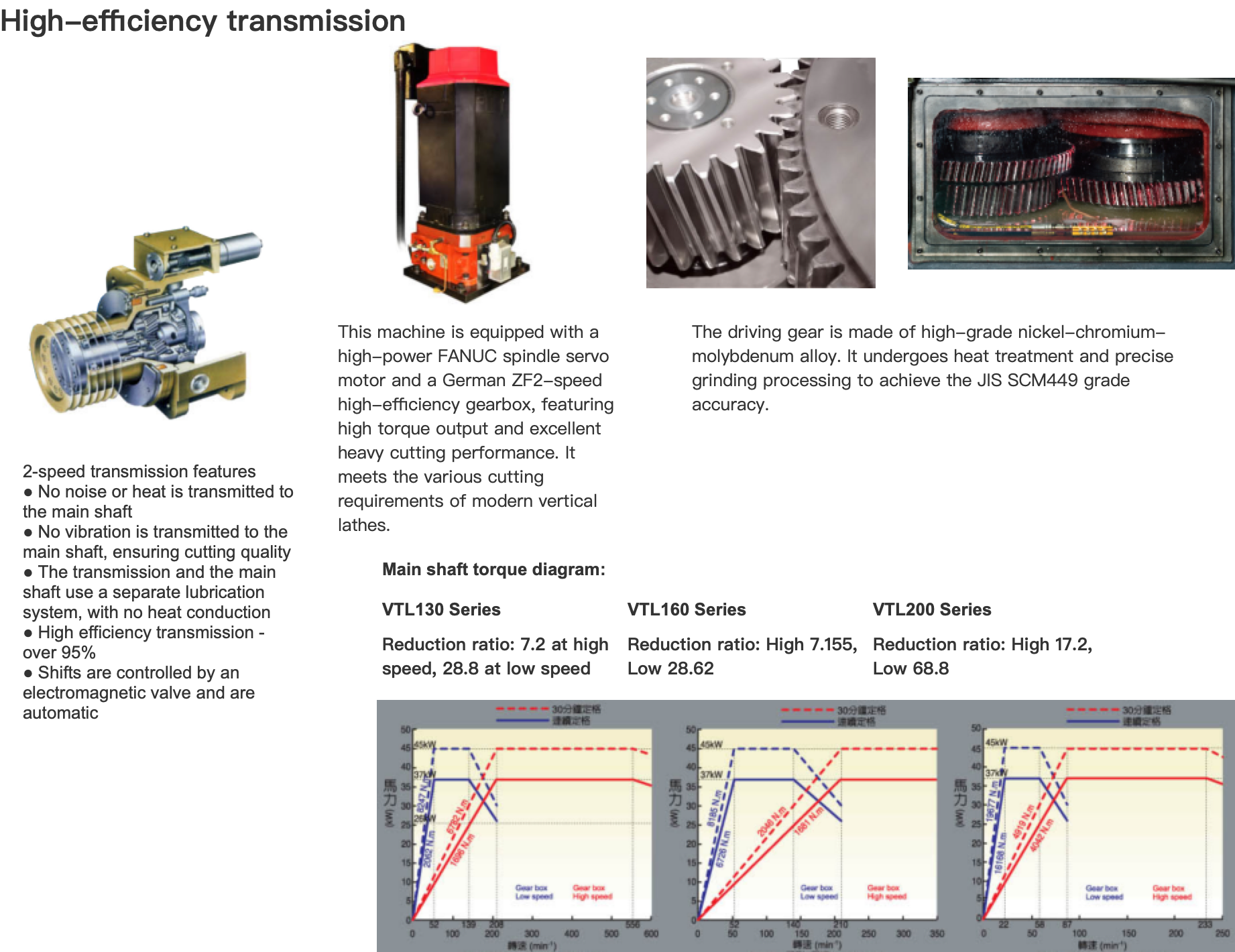

High Efficiency Transmission
This machine adopts a FANUC high-power spindle servo motor and German ZF 2-speed high-efficiency gearbox, delivering high torque output and excellent heavy cutting performance. Meets all cutting performance requirements of modern vertical lathes.
2-Speed Gearbox Features
- ● No noise and heat transfer to spindle
- ● No vibration transmitted to spindle, ensures cutting quality
- ● Gearbox and spindle adopt separate lubrication systems, no heat conduction
- ● High Efficiency Transmission---exceeds 95%
- ● Gear shifting controlled by solenoid valve, automatic shifting
Drive gears usehigh-grade nickel-chromium-molybdenum alloy,, heat-treated and precision-ground to achieve JIS SCM449 grade precision.
Spindle Torque Diagram:
VTL130Series
Reduction ratio: High 7.2 / Low 28.8
VTL160Series
Reduction ratio: High 7.155 / Low 28.62
VTL200Series
Reduction ratio: High 17.2 / Low 68.8

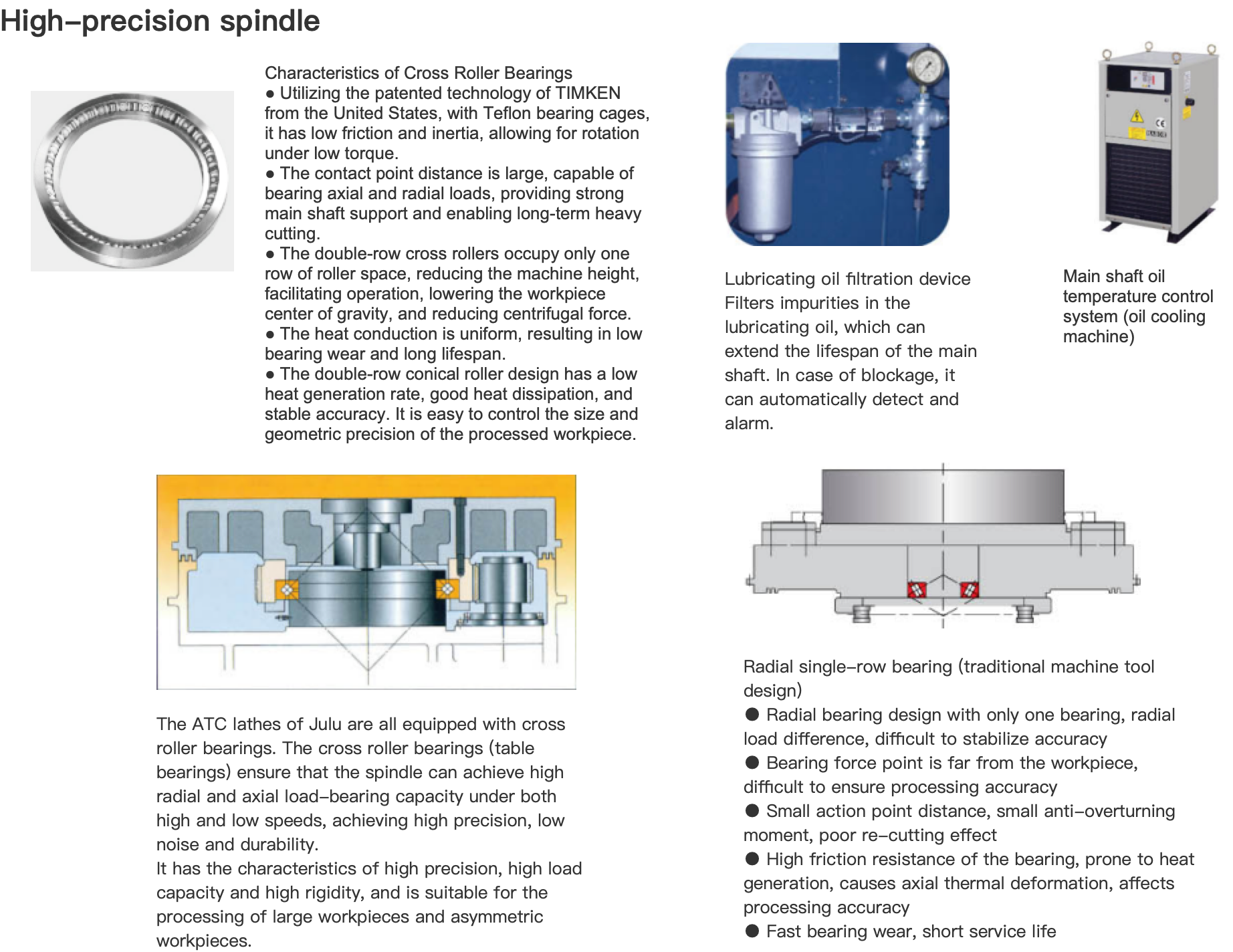

High Precision Spindle
All JULANG ATC vertical lathes adoptcrossed roller bearings(rotary table bearing),ensuring the spindle achieves high radial and axial load capacity at both high and low speeds, delivering high precision, low noise, and durability. Features high precision, high load capacity, and high rigidity, suitable for large and asymmetric workpiece machining.
- ● Radial single bearing design, poor radial load capacity, difficult to stabilize precision
- ● Bearing force point far from workpiece, difficult to ensure machining precision
- ● Small action point distance, low anti-overturning moment, poor heavy cutting performance
- ● Axial-radial bearing has high friction resistance, prone to heating, causing axial thermal deformation and affecting machining precision
- ● Bearing wears quickly, short service life
Crossed Roller Bearings Characteristics
- ● Uses American TIMKEN patented technology with Teflon bearing cage, low friction and inertia, rotatable under low torque
- ● Large force point distance, can bear axial and radial loads, solid spindle support, suitable for long-time heavy cutting
- ● Double-row crossed rollers occupy single-row space, reduced machine height, convenient operation, low workpiece center of gravity, small centrifugal force
- ● Uniform heat conduction, low bearing wear, long service life
- ● Double-row tapered roller design, low heat generation, good heat dissipation, stable precision. Easy to control the dimensional and geometric accuracy of machined workpieces
Lubricating Oil Filtration Device
- ● Filters impurities in lubricating oil, extending spindle service life. If blockage occurs, automatic detection and alarm
Spindle Oil Temperature Control System
- ● lubricating oil cooler,Precisely controls spindle oil temperature, ensuring stable machining precision

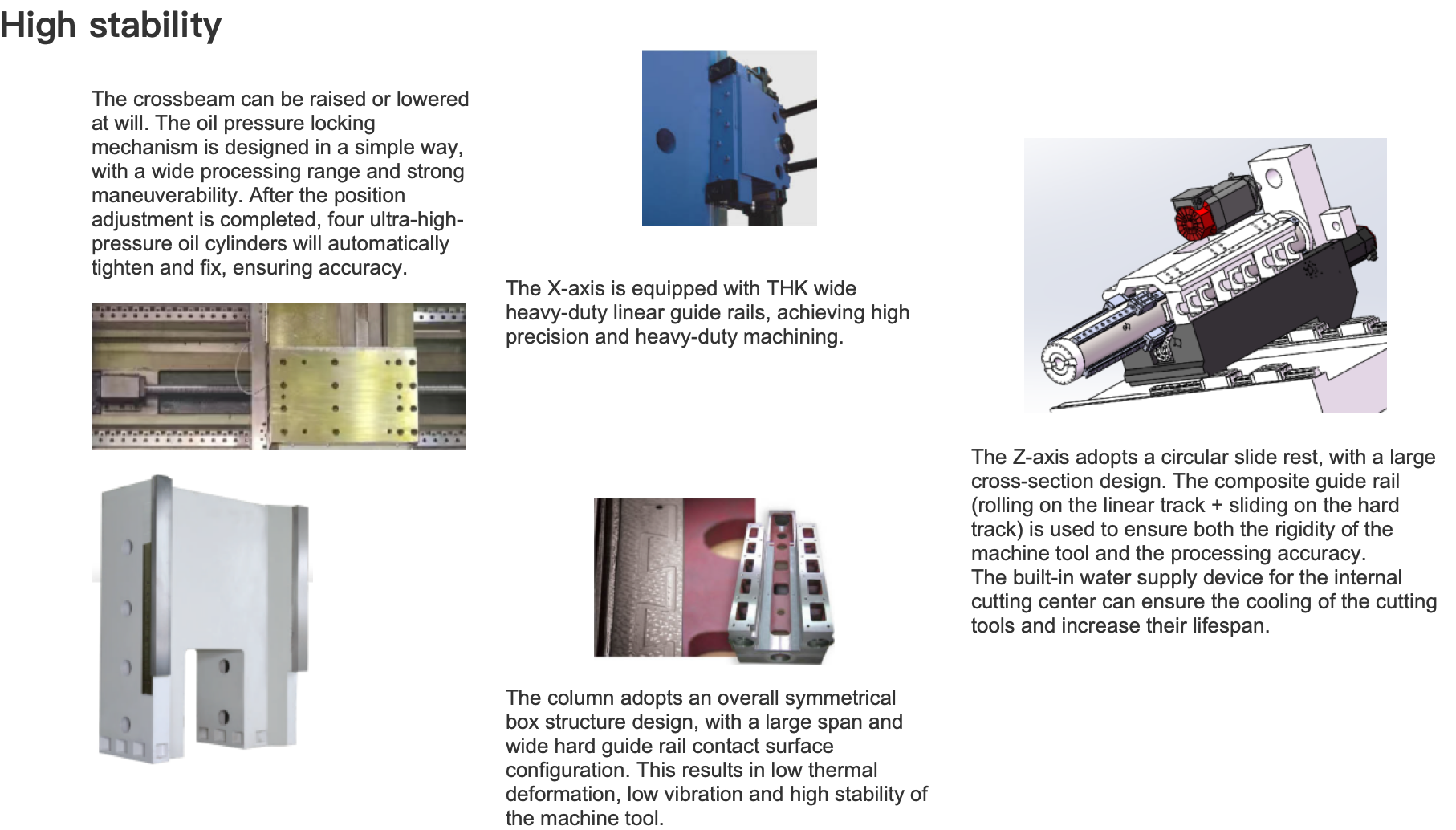

High Stability
Symmetrical Column Design
The column adopts a symmetrical structure design with uniform thermal deformation, effectively ensuring machining precision stability.
Crossbeam Lifting System
The crossbeam can move up and down arbitrarily with hydraulic clamping mechanism design, simple structure, large machining range, and high mobility. After position adjustment, 4 ultra-high-pressure cylinders automatically clamp and secure, ensuring precision.
X-Axis Linear Guide
The X-axis adopts THK wide heavy-duty linear guide, achieving high precision heavy cutting machining.
Z-Axis Composite Guide
The Z-axis adopts a circular ram with extra-large cross-section design, linear guide (rolling) + hard guide (sliding) composite guide, ensuring machine rigidity while maintaining machining precision.

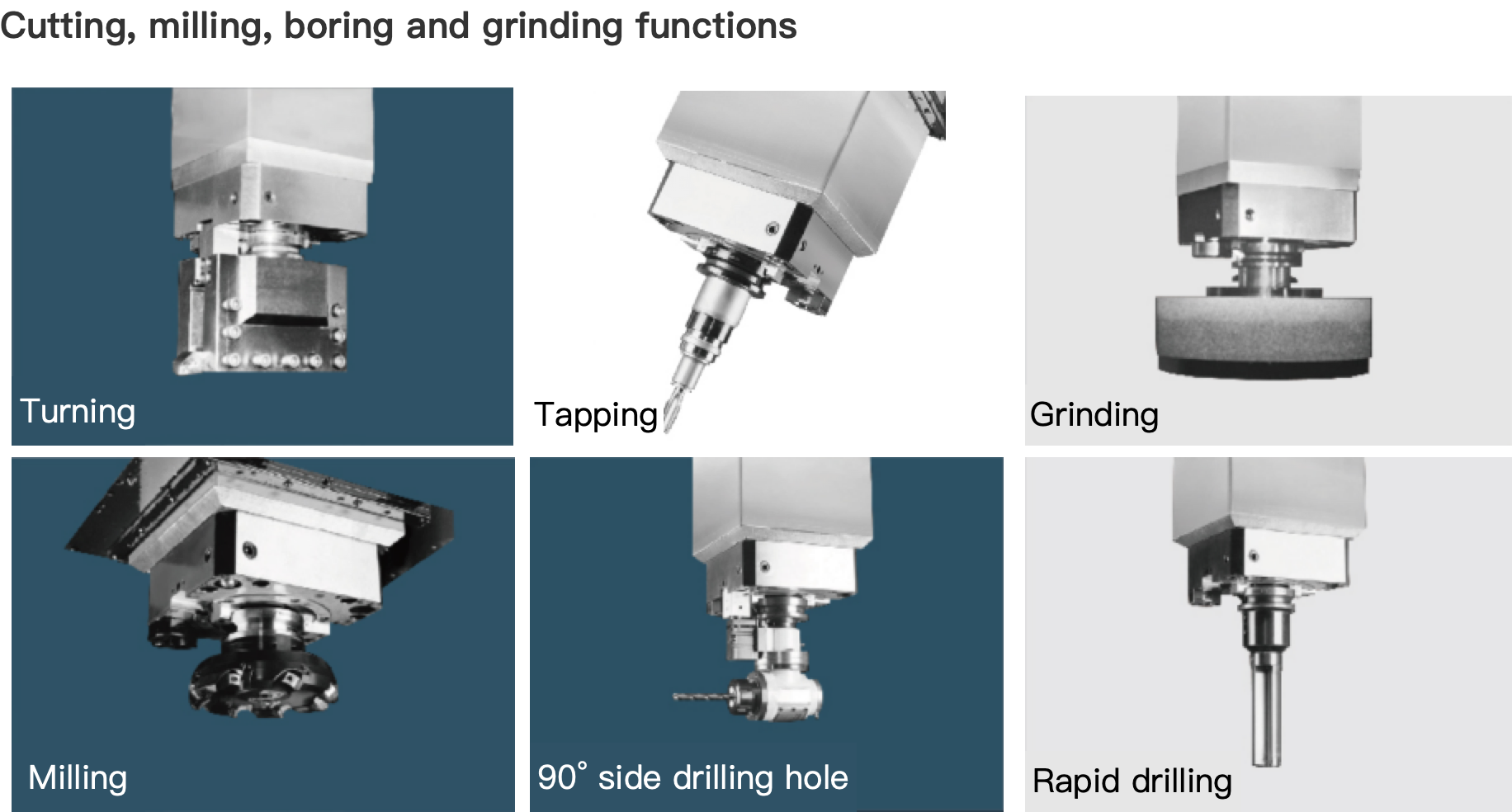

Turning, Milling, Boring, Grinding
Turning
Milling
Tapping
Grinding
90°side drilling
Rapid Drilling

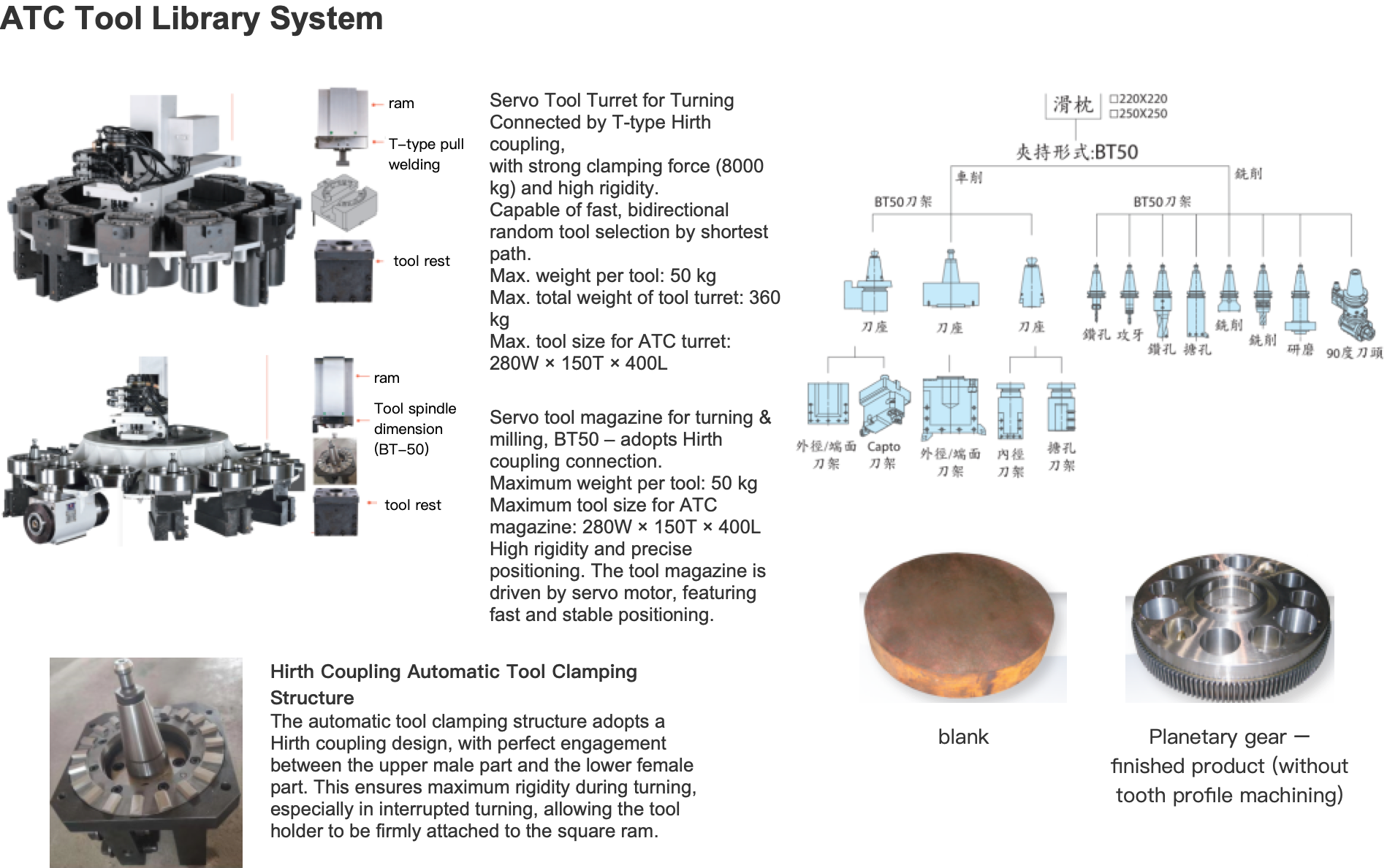

ATC Tool Magazine System
Blank
Planetary Gear
Turning Servo Tool Magazine
T-type tooth disc connection, large clamping force (8000 Kg), good rigidity. Quick bi-directional nearest tool selection. Single tool max weight 50 Kg, tool magazine max weight 360 Kg.
Turning & Milling Servo Tool Magazine BT50
Adopts tooth disc connection type, good rigidity, accurate positioning. Tool magazine driven by servo motor, fast positioning, stable. Single tool max weight 50 Kg.
Tooth Disc Auto Tool Clamping Structure
The automatic tool clamping structure adopts a tooth disc structure with upper and lower male/female perfect engagement, maximizing rigidity during turning, especially during interrupted cutting.
Mechanical Specifications
| Item | Name | Unit | VTL100ATC | VTL100ATC+C | VTL130ATC | VTL130ATC+C | VTL160ATC | VTL160ATC+C | VTL200ATC | VTL200ATC+C |
|---|---|---|---|---|---|---|---|---|---|---|
| Mechanical Capacity | Table Diameter | mm | 1000 | 1000 | 1300 | 1300 | 1600 | 1600 | 2000 | 2000 |
| Max Rotation Diameter | mm | 1300 | 1300 | 1600 | 1600 | 2000 | 2000 | 2500 | 2500 | |
| Max Cutting Diameter | mm | 1200 | 1200 | 1600 | 1600 | 2000 | 2000 | 2500 | 2500 | |
| Max Workpiece Height | mm | 1000 | 1000 | 1200 | 1200 | 1200 | 1200 | 1400 | 1400 | |
| Max Workpiece Weight | kg | 4000 | 4000 | 5000 | 5000 | 8000 | 8000 | 12000 | 12000 | |
| Travel | X-Axis Travel (Left/Right) | mm | 650 | -70 | 880 | 160 | -100+1180 | 160 | 1350 | 180 |
| Z-Axis Travel (Up/Down) | mm | 800 | 800 | 800 | 800 | 800 | 800 | 1200 | 1200 | |
| Crossbeam Up/Down Travel | mm | 800 | 800 | 800 | 800 | 800 | 800 | 1000 | 1000 | |
| Positioning Levels | mm | 4级X200 | 4级X200 | 4级X200 | 4级X200 | 4级X200 | 4级X200 | 5级X200 | 5级X200 | |
| Spindle | Spindle Speed | rpm | 2-108 | 2-108 | 2-108 | 2-108 | 2-64 | 2-64 | 2-64 | 2-64 |
| rpm | 108-400 | 108-400 | 108-300 | 108-300 | 65-250 | 65-250 | 65-200 | 65-200 | ||
| Max Spindle Torque | Nm | 8570 | 8570 | 16000 | 16000 | 26000 | 26000 | 46000 | 46000 | |
| 2# Milling Spindle | rpm | 50-2250 | 50-2250 | 50-2250 | 50-2250 | |||||
| Nm | 280 | 430 | 430 | 470 | ||||||
| Ram | Round Ram Size | mm | Ф240 rounded bearing support | Ф240 rounded bearing support | Ф240 rounded bearing support | Ф240 rounded bearing support | ||||
| Z-Axis Guide Type | mm | Composite guideway: 4 linear guides + 4 hard rails | Composite guideway: 4 linear guides + 4 hard rails | Composite guideway: 4 linear guides + 4 hard rails | Composite guideway: 4 linear guides + 4 hard rails | |||||
| Feed Speed | X-Axis Rapid Feed | m/min | 12 | 12 | 12 | 12 | 12 | 12 | 10 | 10 |
| Z-Axis Rapid Feed | m/min | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| Manual Feed | m/min | 0-6 | 0-6 | 0-6 | 0-6 | 0-6 | 0-6 | 0-6 | 0-6 | |
| Tool Turret/Ram | Optional: Square Ram | 2 stations | 2 stations | 2 stations | 2 stations | |||||
| Optional: Servo Tool Turret | Vertical 5 stations | Vertical 5 stations | Vertical 5 stations | Vertical 5 stations | ||||||
| Automatic Tool Changer | Tool Stations | 12 | 16 | 12 | 16 | 12 | 16 | 16 | 16 | |
| Tool Holder Type | 7/24 taper BT50 | 7/24 taper BT50 | 7/24 taper BT50 | 7/24 taper BT50 | ||||||
| Max Tool Size | mm | 280W x150Tx400L | 280W x150Tx400L | 280W x150Tx400L | 280W x150Tx400L | |||||
| Max Tool Weight | kg | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Max Tool Magazine Load | kg | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | |
| Tool change time | Sec | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | |
| Spindle Motor (FANUC) | Spindle Motor | kw | 30/37 | 30/37 | 37/45 | 37/45 | 45/55 | 45/55 | 60/75 | 60/75 |
| #2 Milling Spindle Motor | kw | 7.5/11 | 7.5/11 | 7.5/11 | 11/15 | |||||
| X-Axis Servo Motor | kw | 7 | 7 | 3 | 7 | 3 | 7 | 7 | 7 | |
| Z-Axis Servo Motor | kw | 7 | 7 | 3 | 7 | 3 | 7 | 7 | 7 | |
| C/F Axis Servo Motor | kw | 7 | 7 | 7 | 7 | |||||
| Coolant Pump Motor | kw | 3.6+1.35 | 3.6+1.35 | 3.6+1.35 | 3.6+1.35 | 3.6+1.35 | 3.6+1.35 | 3.6+1.35 | 3.6+1.35 | |
| Tank Capacity | Hydraulic Tank | L | 130 | 130 | 130 | 130 | 130 | 130 | 130 | 130 |
| Coolant Tank | L | 600 | 600 | 600 | 600 | 600 | 600 | 1000 | 1000 | |
| Lubricating Oil Tank | L | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 | |
| Others | Power Specification | 380V±10%, 50Hz±1%, three-phase alternating current | ||||||||
| Power Requirement | KVA | 55 | 65 | 65 | 75 | 65 | 75 | 90 | 105 | |
| Machine Dimensions (L×W×H) | mm | 3800×4600×5000 | 4200×5000×5300 | 4800×5500×5300 | 5500×7600 | |||||
| Machine Weight (approx.) | Kg | 23 | 25 | 29000 | 31000 | 33000 | 35000 | 47000 | 49000 | |
| Machine Accuracy | mm |
Positioning accuracy: ±0.007mm/500mm Repeat positioning accuracy: ±0.005mm C-axis positioning accuracy: ±7.5″/360° C-axis repeat positioning accuracy: ±5″ |
||||||||
VTL10 — 40 inch
VTL12 — 50 inch
VTL16 — 63 inch
Application Industries
2,Construction and Mining Machinery: excavator hub, track wheel, hydraulic cylinder base, crusher rotor, wear-resistant bushing
3,automotive and rail transit:automotive wheel hub, aluminum hub, brake drum, brake disc, flywheel, high-speed rail brake disc, bogie flange, train wheel
4,Energy Equipment (Wind/Hydro/Nuclear): wind power flange, hydro turbine runner, nuclear reactor head, seal ring
5,Petrochemical and Explosion-Proof Equipment: rod joint, wellhead flange, valve body, explosion-proof motor end cap, seal shaft sleeve
6,Aerospace and Lightweight Equipment: aircraft landing gear hub, engine turbine disk blank, casing, carbon fiber flange/shaft sleeve
7,mold manufacturing:plastic mold core/cavity,bottle mold,tire mold pattern ring,die casting mold core
