Four Core Technology Advantages
Integrating cutting-edge technologies such as magnetic levitation, linear motors, and permanent magnet electric spindles to redefine precision grinding standards
High Vibration Damping
The base and bridge of fixed components are made of integral mineral casting, providing excellent vibration damping performance to ensure stable machining processes.
High Cutting Capability
Permanent magnet synchronous electric spindle with ultra-high speed grinding significantly improves machining efficiency while ensuring excellent surface quality.
High Precision
Linear motor drive with zero backlash transmission and zero wear design maintains stable machining precision over the long term.
5-Axis Simultaneous Machining
Combined with cradle-type 5-axis, it enables integrated machining of complex components, expanding the application range.

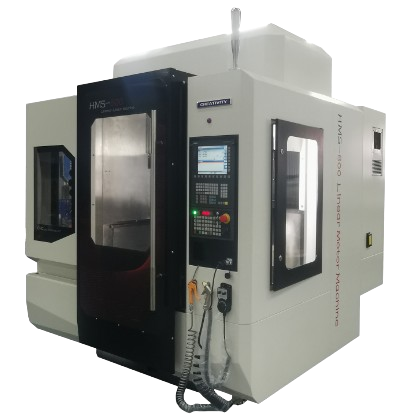

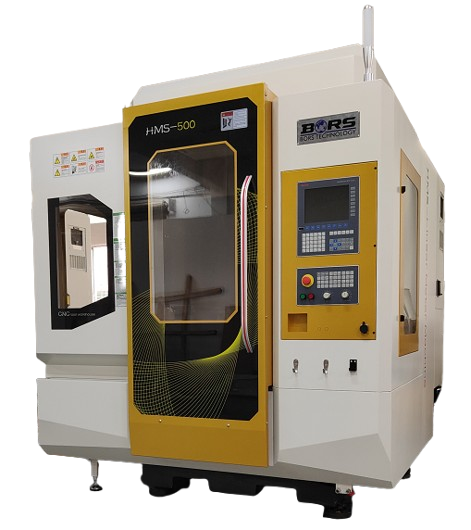

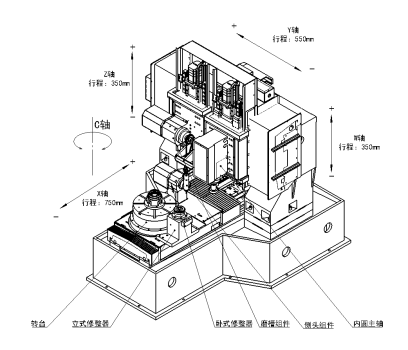

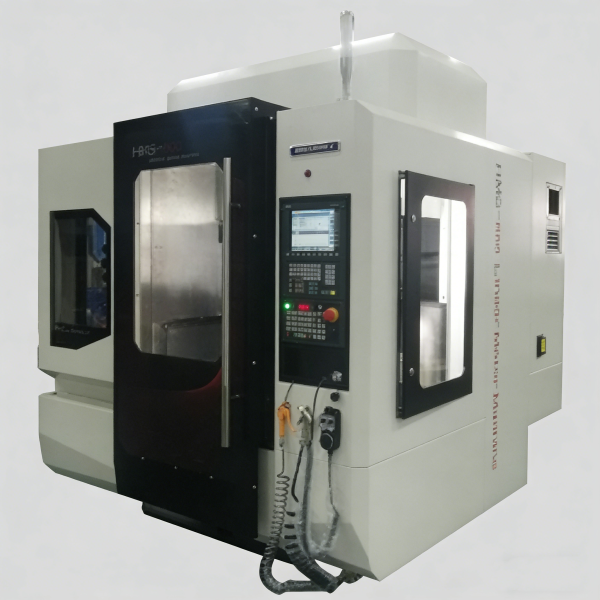

Magnetically Levitated Vertical Jig Grinding Machine

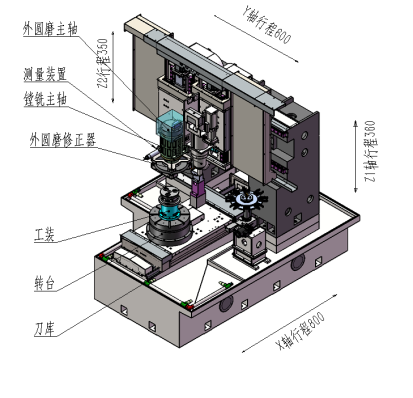

Planetary Carrier Combined Grinding & Milling Machine
Planetary Carrier Combined Grinding & Milling Machine - Application: Used for grinding and milling of planetary carriers for RV reducers.
Pinion Housing Combined Grinding Machine - Application: Used for grinding of pinion housings for RV reducers. It can complete the grinding of inner and outer diameters, end faces, and internal gears of the pinion housing in a single clamping.
Technical Parameters
Complete Specification Comparison of VGU300 / VGU400 / VGU500 Models
| Category | Parameter | Unit | VGU300 | VGU400 | VGU500 | |
|---|---|---|---|---|---|---|
| Machining Range | Inner Diameter Grinding Size | mm | Φ30～200 | Φ30～300 | Φ30～400 | |
| Outer Diameter Grinding Size | mm | Φ0～300 | Φ0～400 | Φ0～500 | ||
| Max. Workpiece Rotation Diameter | mm | Φ250 | Φ250 | Φ250 | ||
| Max. Workpiece Height | mm | 250 | 350 | 450 | ||
| Stroke | Y Stroke | mm | 500 | 600 | 800 | |
| X Stroke | mm | 300 | 500 | 500 | ||
| Z Stroke | mm | 250 | 300 | 420 | ||
| Distance from Spindle Face to Table | mm | 70-320 | 85-385 | 70-490 | ||
| 5-Axis Cradle Rotary Table (Optional) |
Table Diameter | mm | Φ200 | Φ260 | Φ320 | |
| Max. Rotation Diameter | mm | Φ300 | Φ400 | Φ530 | ||
| Max. Table Load | Kg | 80 | 100 | 200 | ||
| Rotation Angle | - | C:360/A:±120° | C:360/A:±120° | C:360/A:±120° | ||
| Rated Speed | rpm | A:120/C:150 | A:253/C:105 | A:350/C:100 | ||
| Rated Torque | N.m | A:170/C:45 | A:200/C:200 | A:60/C:60 | ||
| Spindle | Standard Spindle Type | - | HSKE40-D120-30000 | HSKE40-D120-40000 | HSKE40-D120-40000 | |
| Optional Spindle Type | - | HSKE40-D100-40000 | HSKE50-D150-24000 | HSKA63-D150-20000 | ||
| Tool Magazine | Magazine Type | - | Disc Magazine 20T | Disc Magazine 24T | Disc Magazine 24T | |
| Drive Type | X/Y/Z Axes | - | Linear Motor | Linear Motor | Linear Motor | |
| Feed Speed | Max. Rapid Feed Speed (X/Y/Z) | m/min | 60/60/60 | 60/60/60 | 48/48/48 | |
| Precision | Positioning Accuracy (VDI) | mm | ±0.003 | ±0.003 | ±0.003 | |
| Repeatability (VDI) | mm | ±0.002 | ±0.002 | ±0.002 | ||
| Roundness | mm | ≤0.0012 | ≤0.0012 | ≤0.0012 | ||
| Grinding Cylindricity | mm | ≤0.002 | ≤0.002 | ≤0.002 | ||
| Grinding Surface Roughness | μm | ≤Ra 0.32 | ≤Ra 0.32 | ≤Ra 0.32 | ||
| Others | Machine Weight | Kg | 12000 | 15000 | 18000 | |
| Floor Space (L×W×H) | mm | 2500×3630 | 3300×4100 | 3900×4200 | ||
| Note: 1. Product dimensions and specifications are subject to change without notice; 2. Machine appearance is continuously improved, please refer to the actual contract and delivered product. | ||||||
Vertical Grinding Machine Configuration
(INNA, Germany)
(Cross Roller Bearing)
Paper Belt Filter

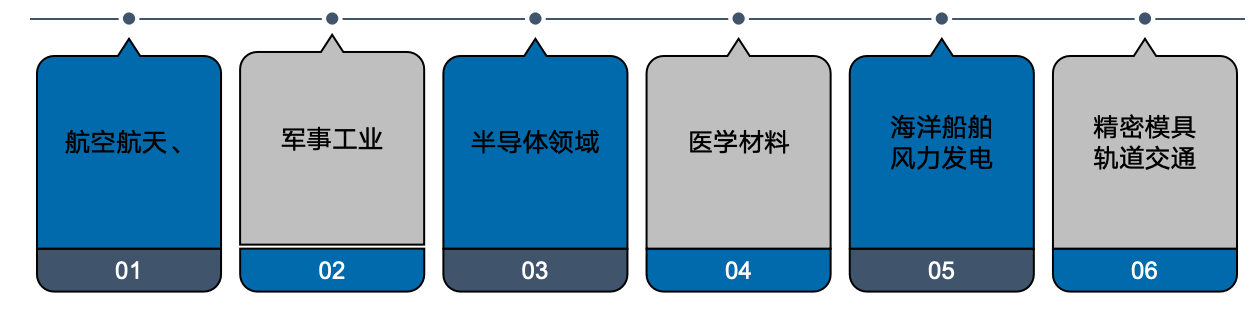

Typical Application Fields

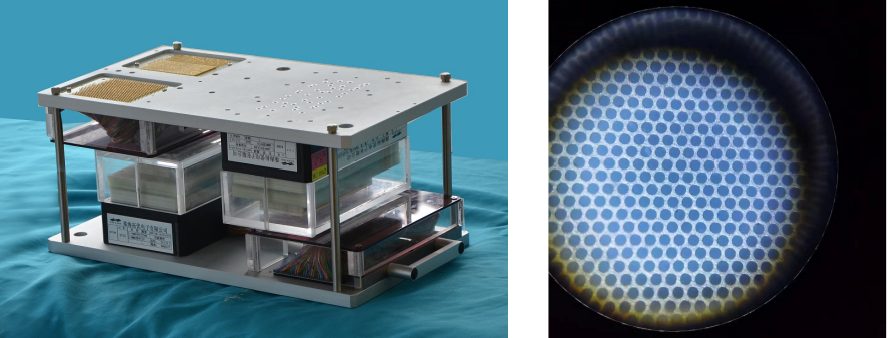

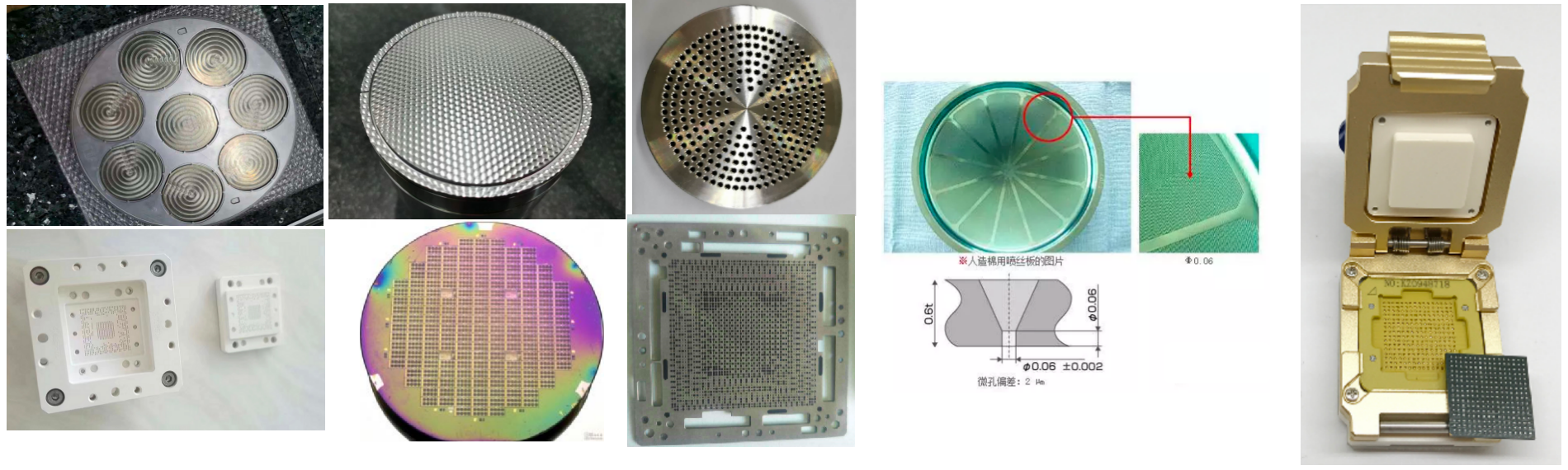

Semiconductor Chip Packaging Micro-holes
Core application of high-precision jig grinding technology in advanced semiconductor packaging, meeting micro-level hole positioning accuracy and surface quality requirements.

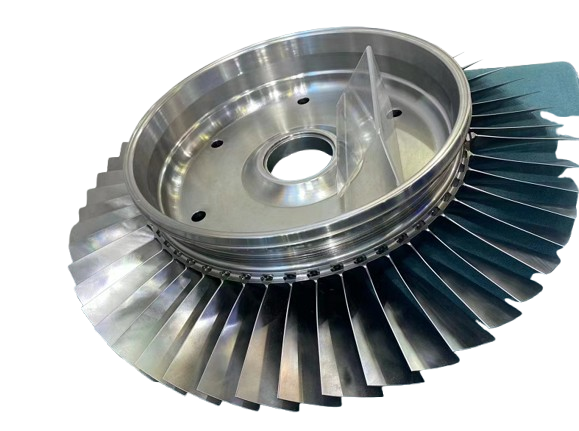

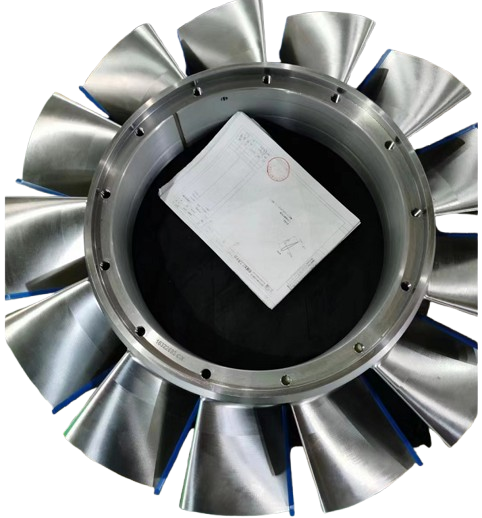

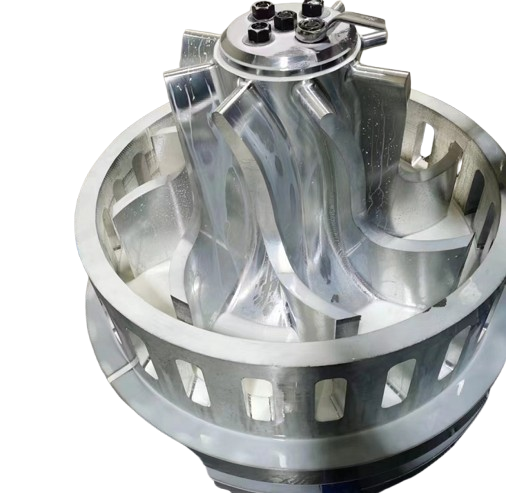

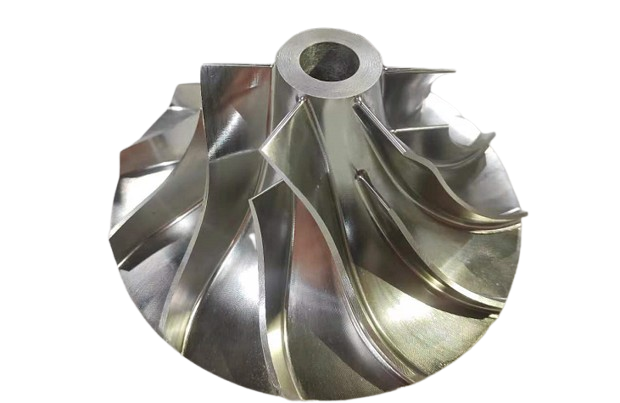

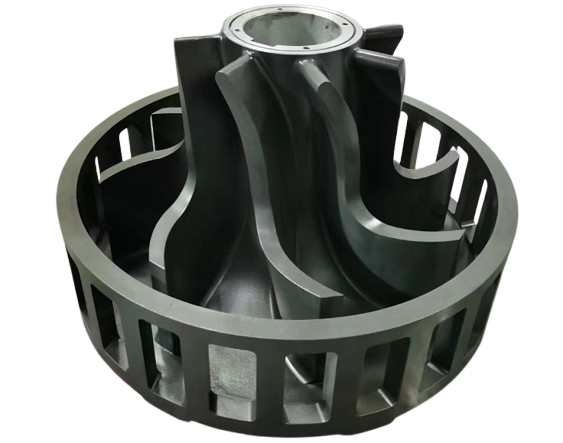

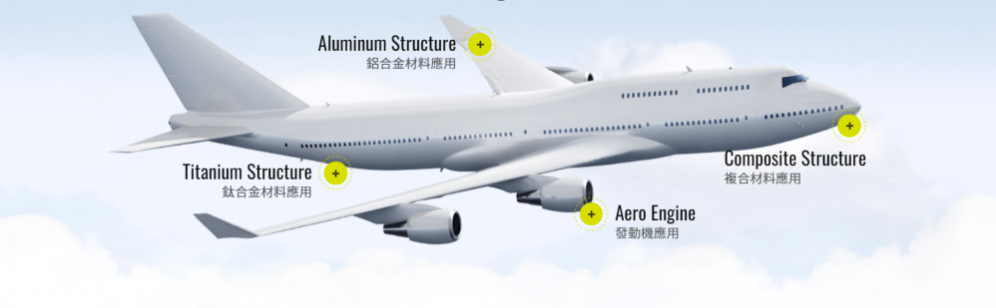

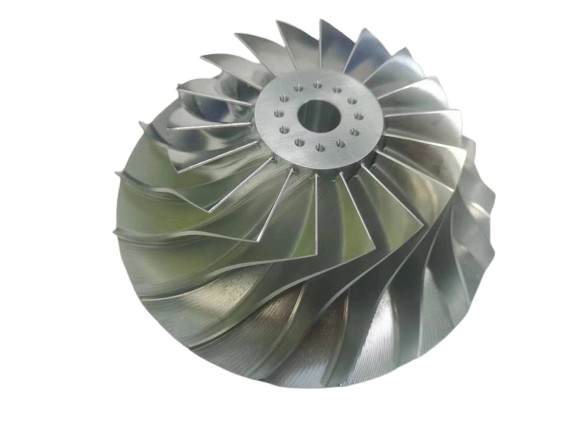

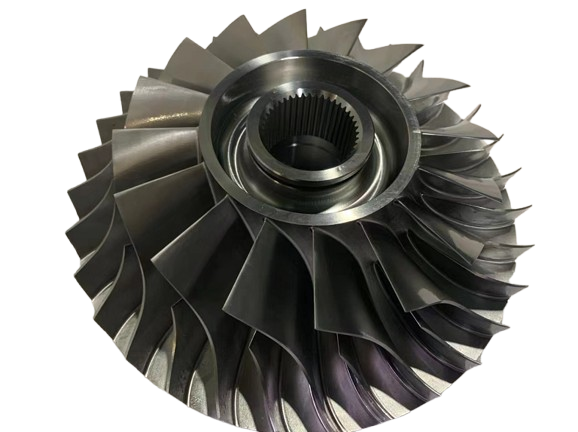

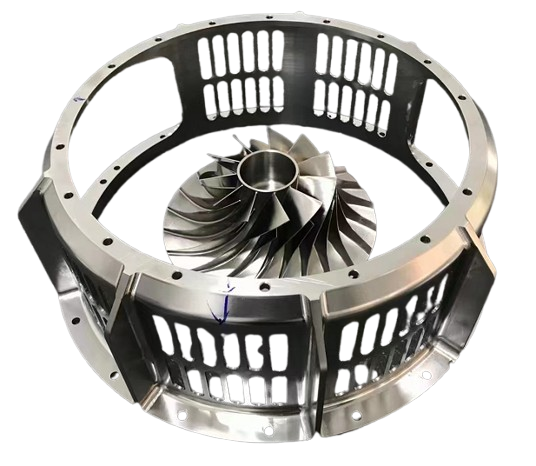

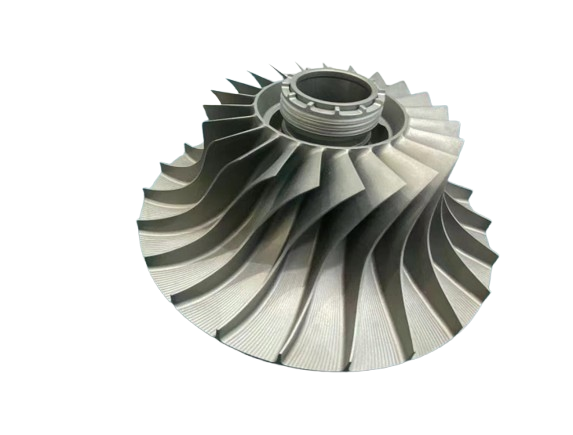

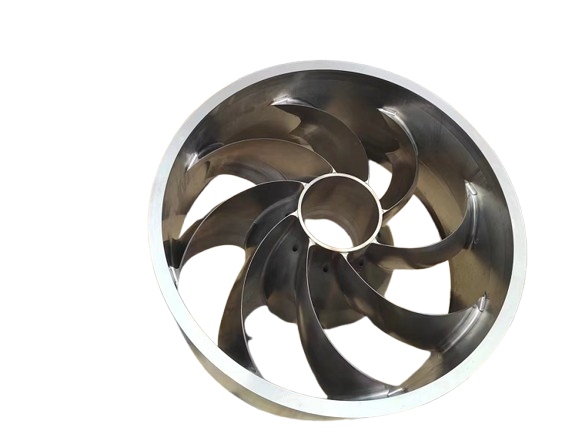

Aerospace & Military 5-Axis Impeller Application
